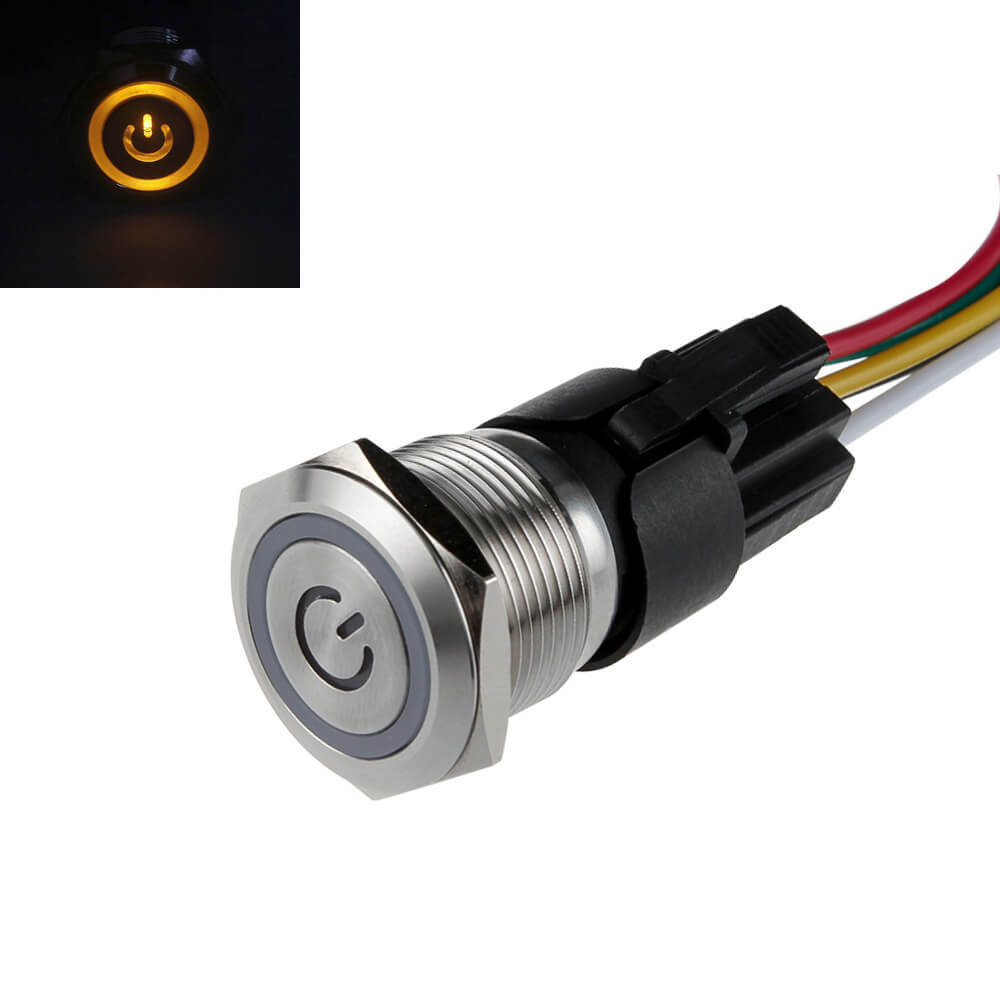

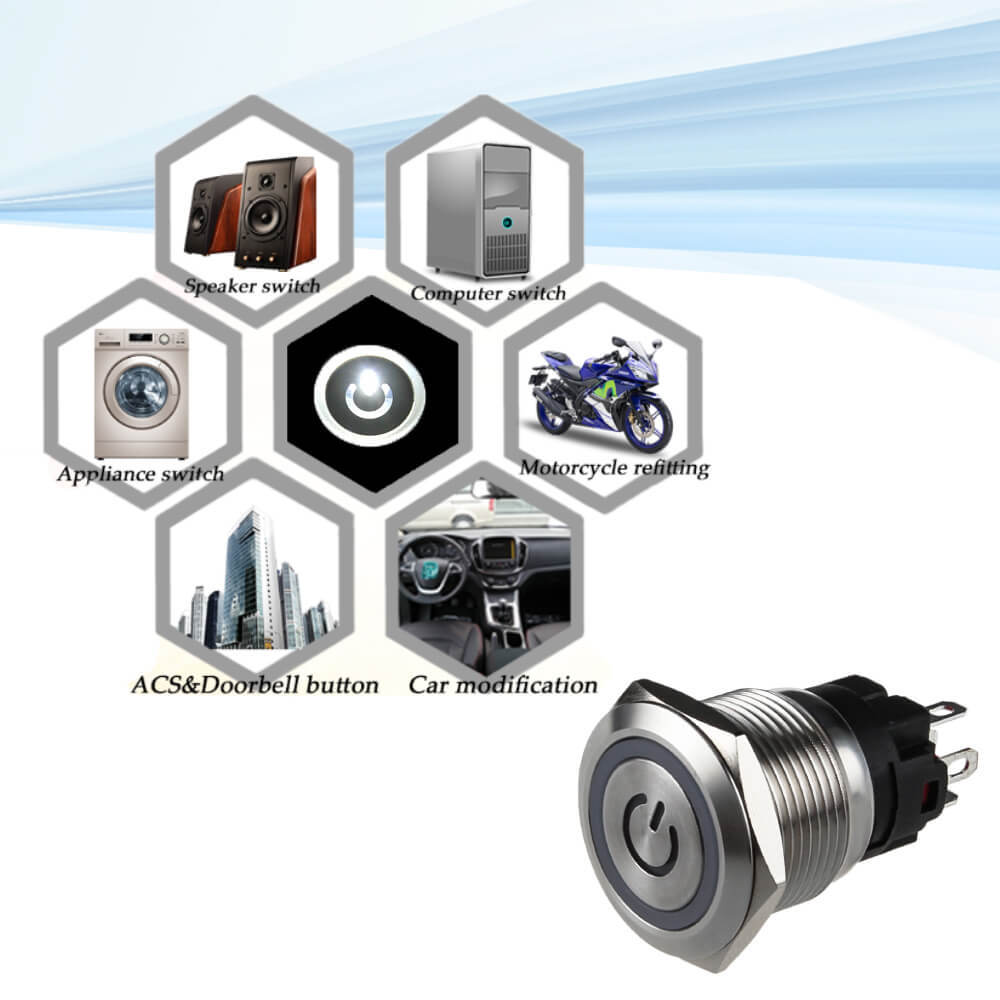

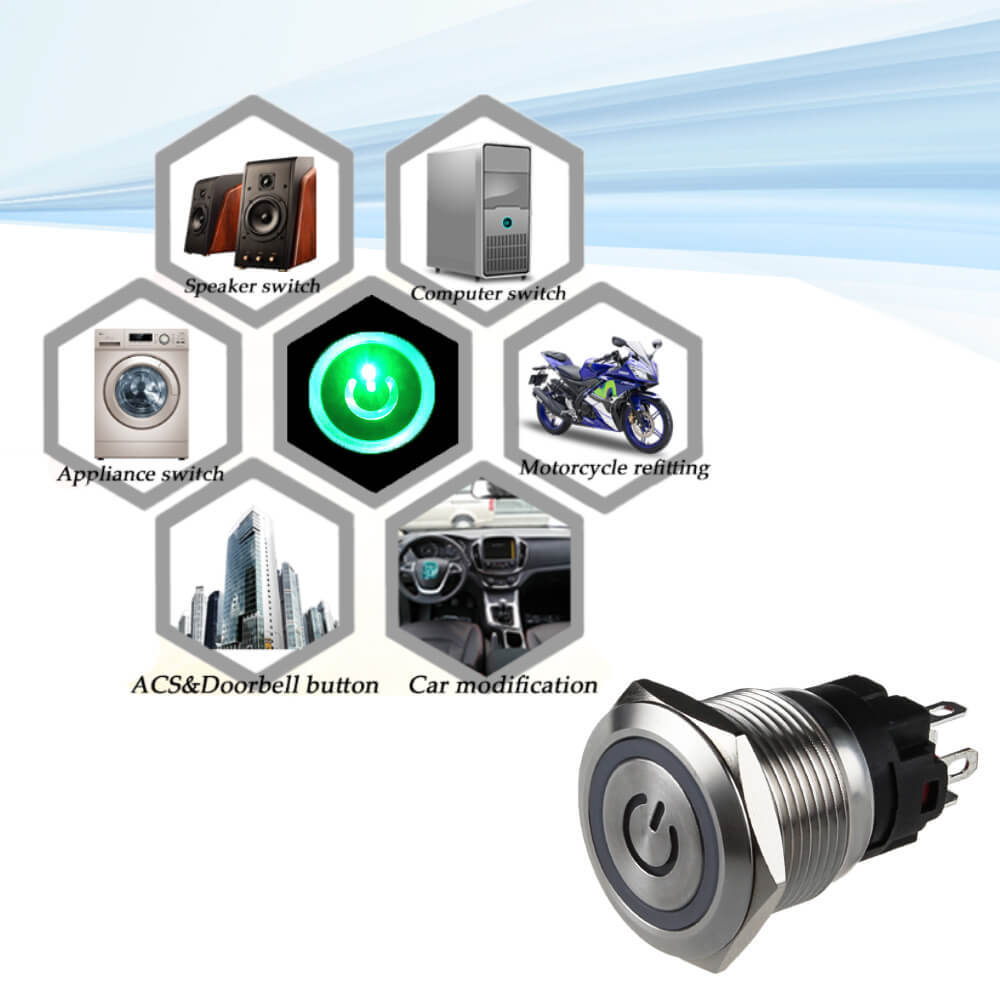

22mm Latching Switch Mounting Hole with LED Angel Eye

Product Details:
-Material: Stainless steel
-Mounting Hole Diameter: 22mm / 0.87"
-Switch Rating: 3A / 250VAC
-LED Voltage: 12V DC / AC

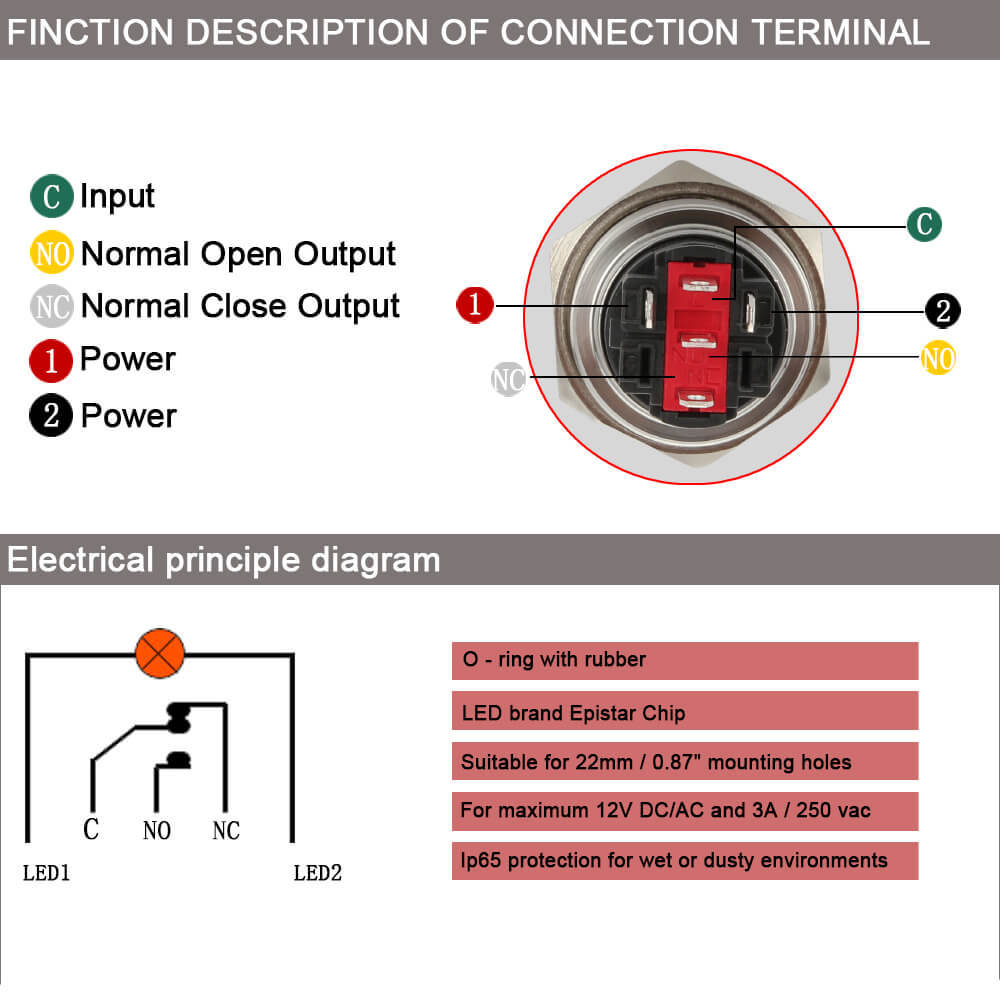

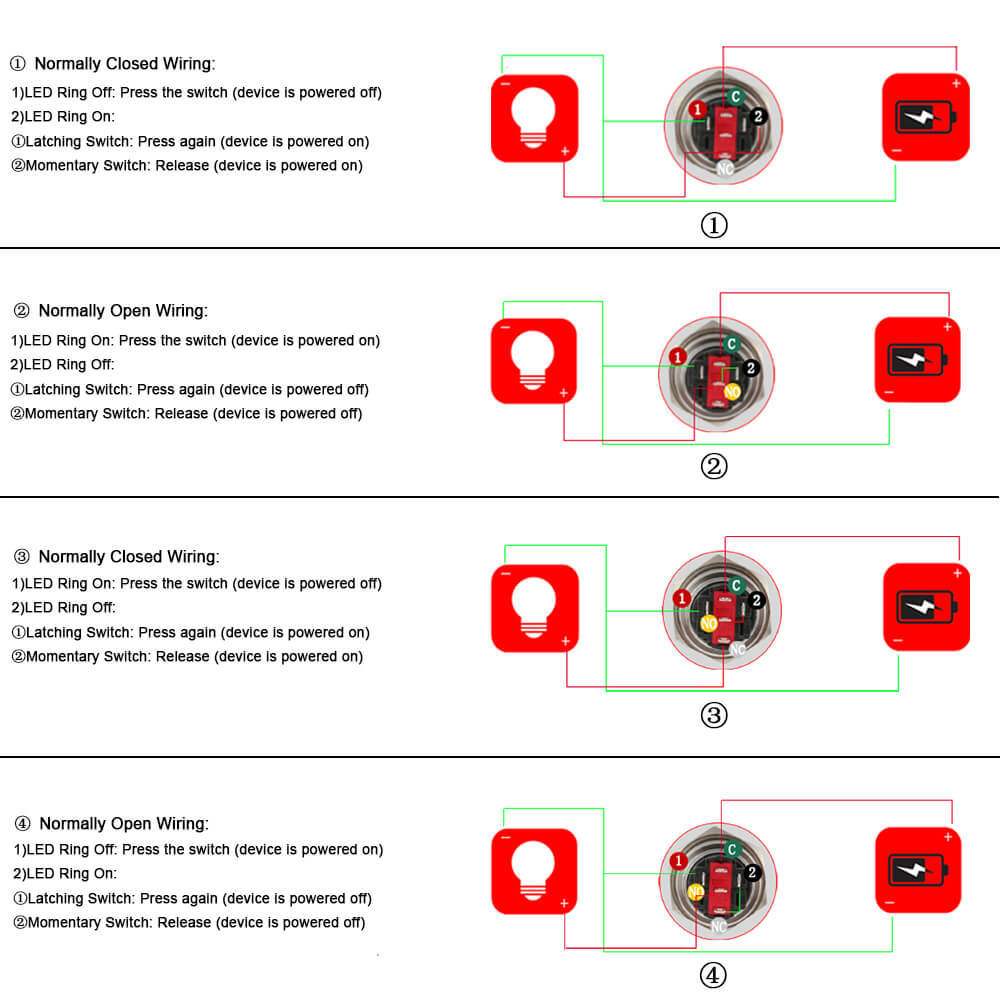

-Contact Configuration: 1NO 1NC 1C
-LED Color: White / Orange / Red / Blue / Green
-IP65 waterproof, protection for wet and damp
-Symbol Design: Power Symbol

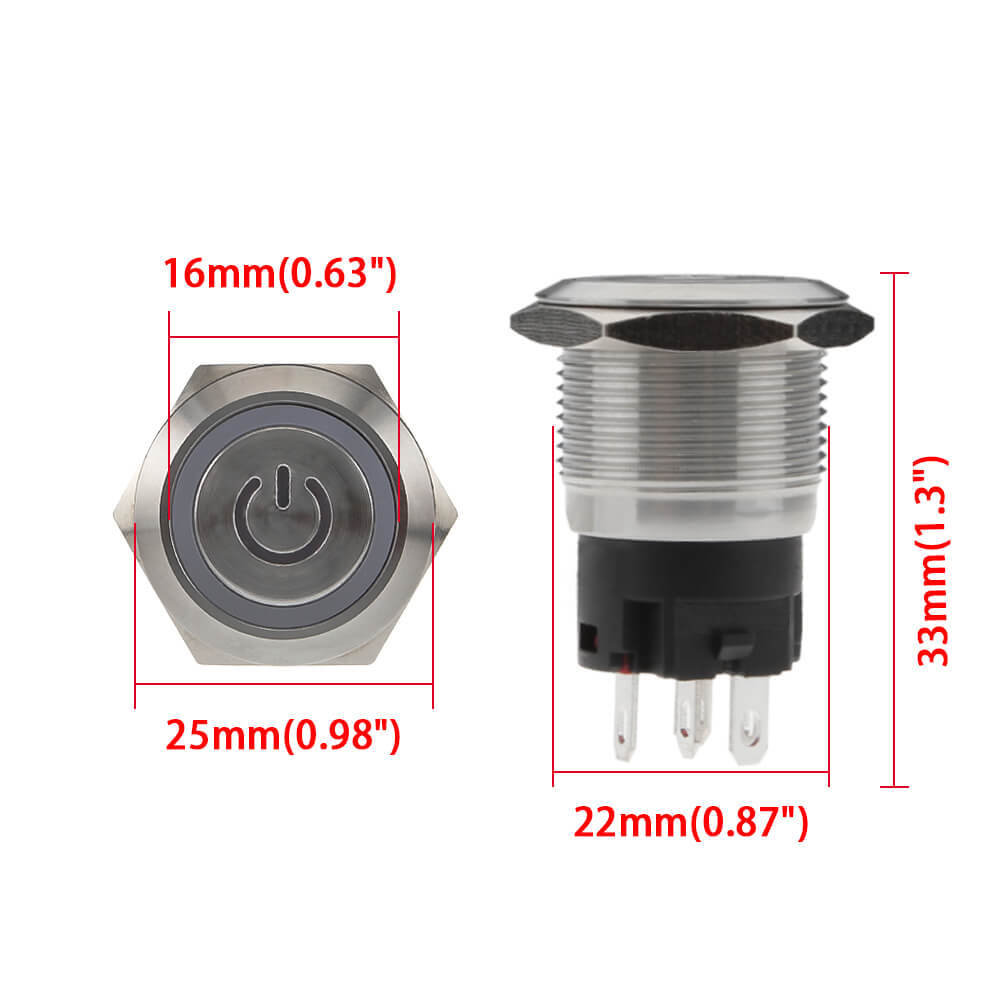

-Item Dimension: 33mm / 1.3" (Length) x 22mm / 0.87" (Socket Diameter) x 16mm / 0.63" (LED Ring Diameter) (as the picture shows)

Product Features:

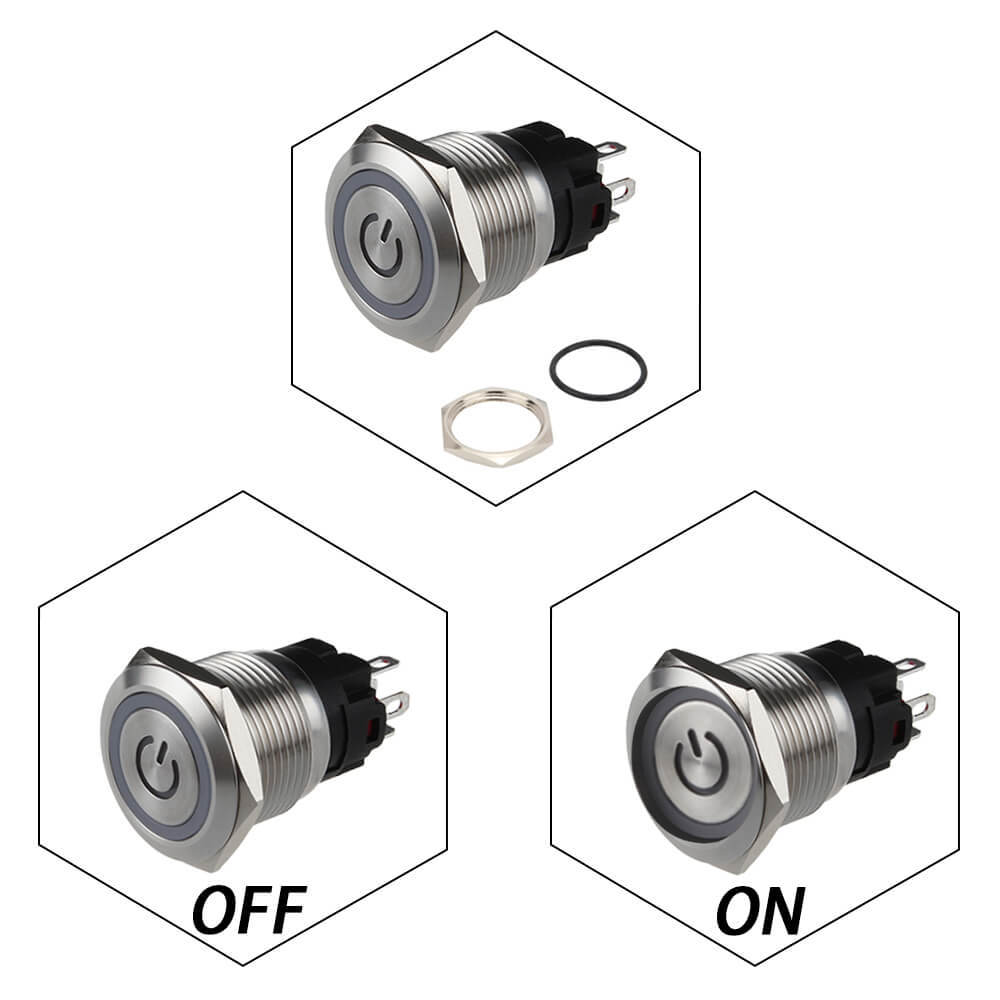

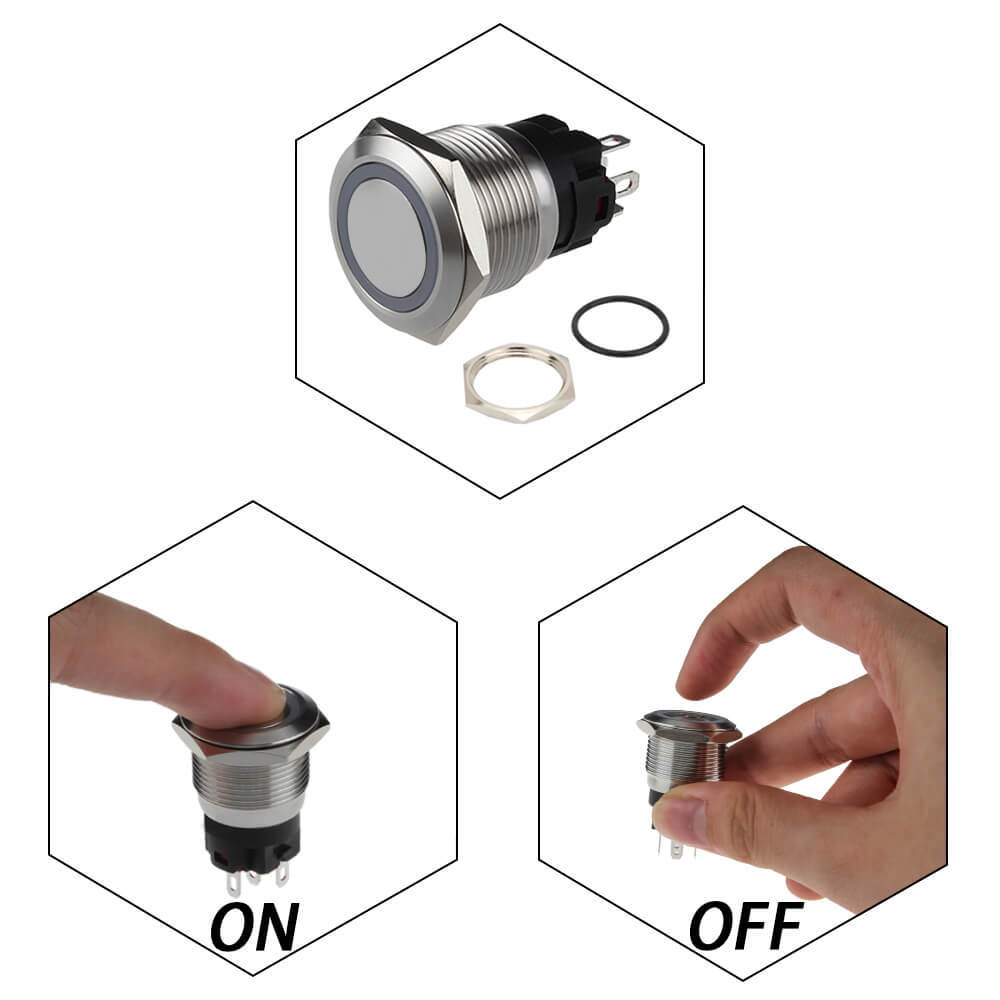

1. Latching Push Button Switch: push it, ON; push it again, OFF.
2. Stainless Steel Push Button Switch is very tough, small, perfect for basic On / Off functions.

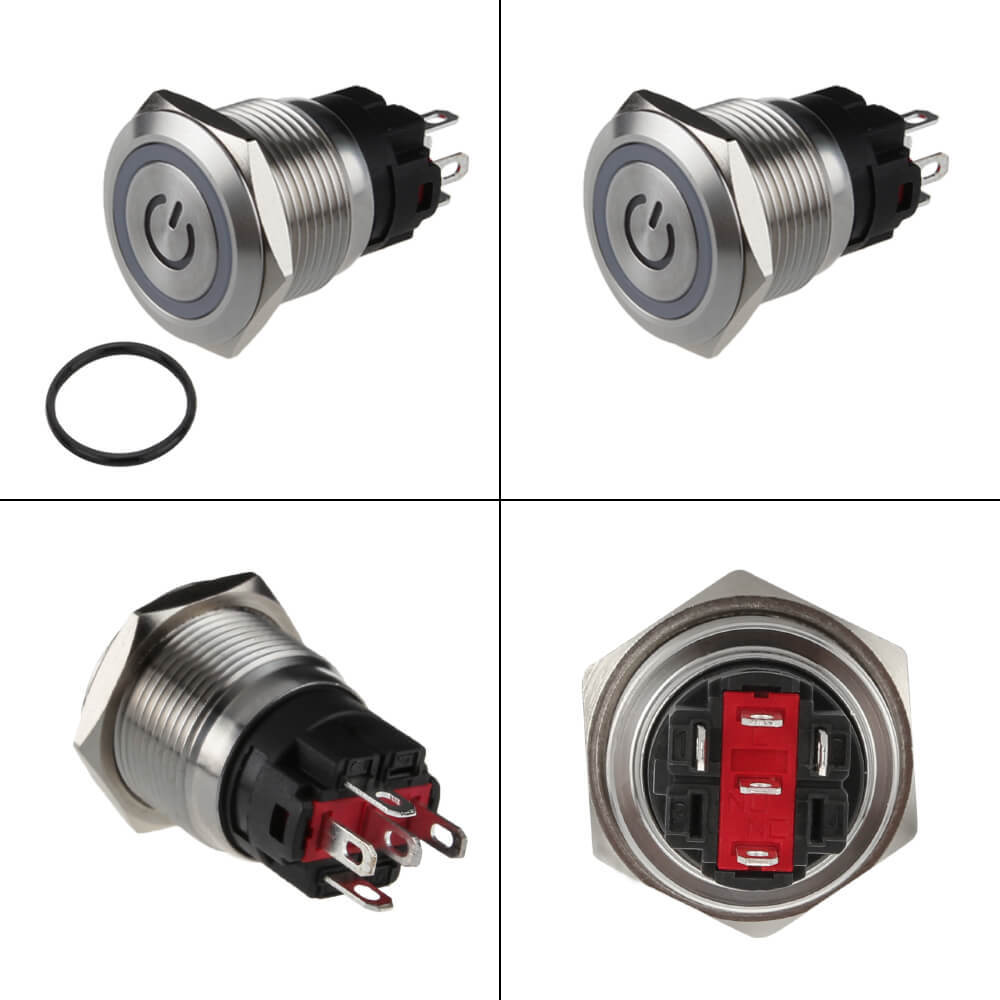

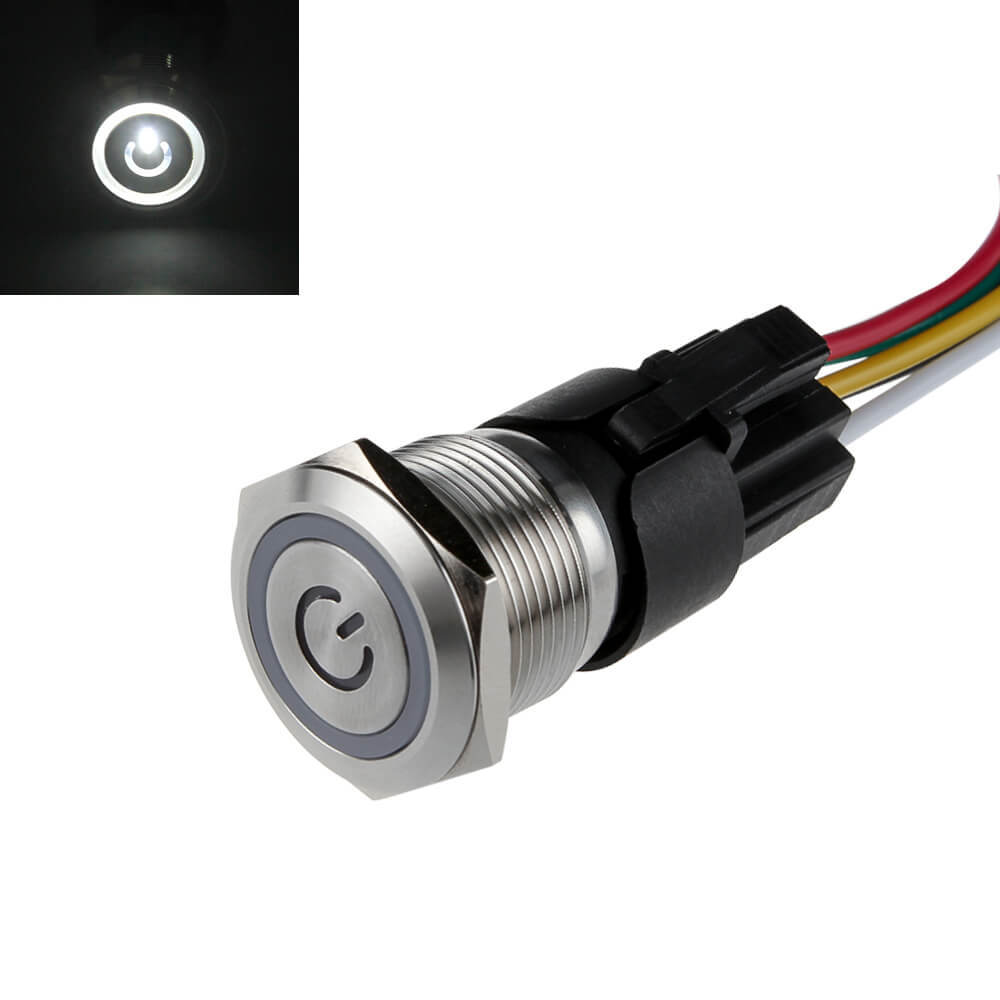

3. Panel mount latching switch with an illuminated LED ring.
4. With effective sealing O-ring against dust and water.
5. Maximum power is 12V DC / AC, 3A / 250VAC and the mounting hole on the button just suitable for 22mm / 0.87".
6. Sweet Tips: Please pay attention to the size and power rate, make sure this push button switch meets your requirements.
7. Super long service life for about 500,000 cycles.

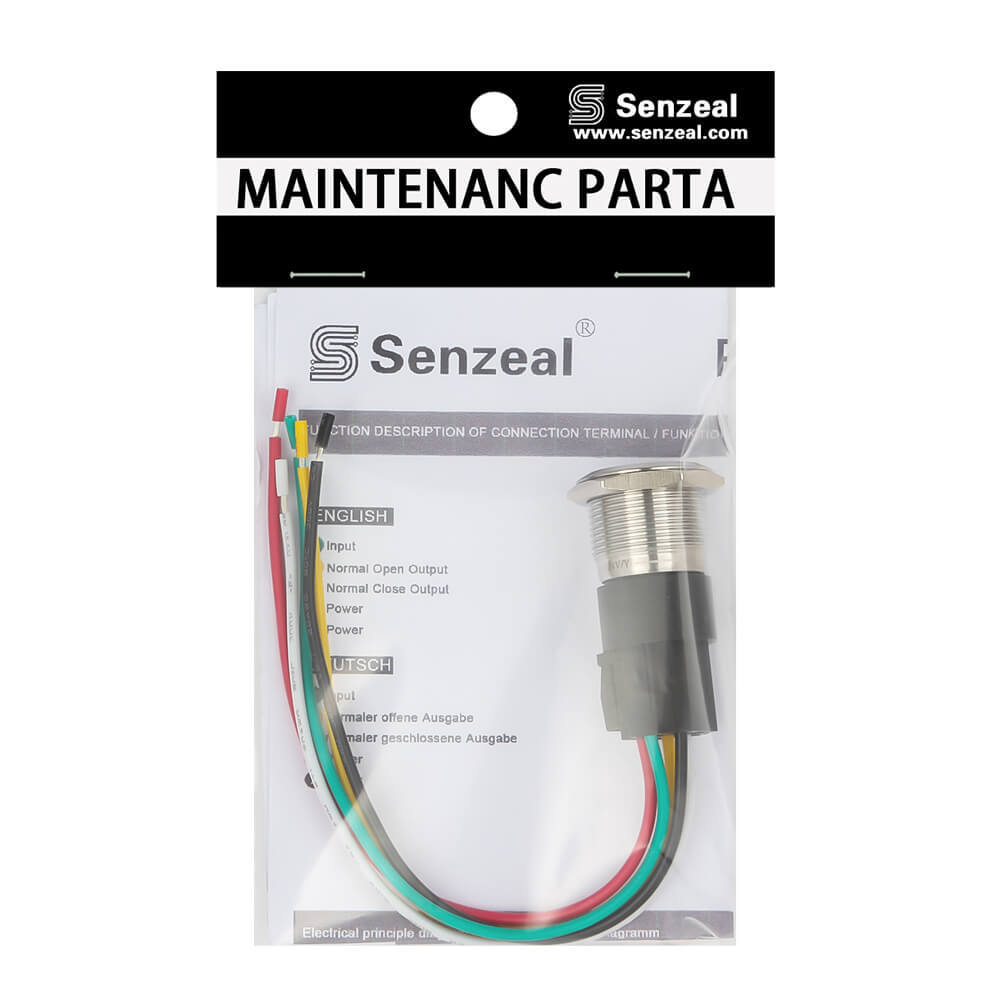

Package Included:
1 x LED Switch
1 x Wire Connector
1 x Rubber O Ring
1 x Product Instruction
